3*160H button nimh battery pack 3.6Volt cion nimh battery 160mah 160H battery
160H 3.6V NiMH Button Rechargeable Battery160mA nimh cion cell battery 3.6V cion rechargeable battery
The 160H Button Cell Rechargeable Batteries are excellent for custom battery packs.
Ni-mh 3.6V 160mAh 160H 3S1P rechargeable battery pack with solder tabs.
NIMH 160H battery Ideal for home appliances, lighting, and more.
OEM nimh battery cion cell type ODM NI-MH button battery 3.6V 160mAh 120H 160H NIMH Rechargeable Replacement Battery Pack With Tabs
160H Ni MH battery manufacturer 3.6V 160mah Ni MH rechargeable battery 3.6V160mah NI-MH rechargeable NiMH battery Replace VAR TA 3/V150H 3-pin 3.6V 150mAh battery.
3.6V nimh cion battery 160H 160mah battery data sheet:
| Battery type | Rechargeable nimh button cell battery pack |
| Voltage | 3.6V |
| Capacity | 160mah |
| Combination | 3S1P |

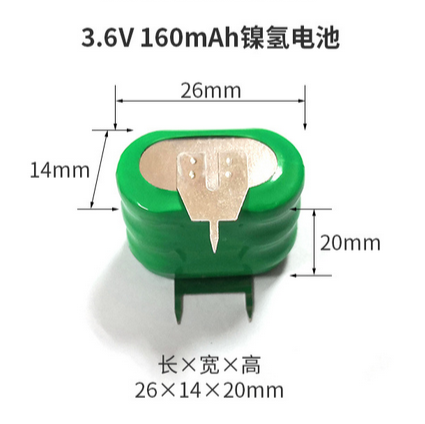

| Dimension | 25*14*19.5mm |
| Standard charge | 16mA, 14~16h |
| Rapid charge | 32mA, 6~7h |
| Standard discharge | 0.1C~1C |
| Terminals | Pins/wires/connector depends on your needed |
Nimh battery 160H 3.6V cion nimh battery pack 160mah nimh battery
Nimh battery application:
Others: Massager, electric toothbrush, electric shaver
Modality equipment: Mobile DVD, MD, CD, digital radio
Decorative lighting: Solar lamps, torch, emergency light
Electronic toy: Electrocar, model airplane, remote control
Electric tool: Electric drill, electric screw, and electric saw
Communication equipment: Cordless telephone, interphone and VOIP
Solar lamps, torch, emergency light, search light, cordless phones, transceivers , cellular phones and fax
machines, electric shavers, electric toothbrushes, massagers and portable vacuum cleaners, emergency power of
machinery.
Button cell nimh batteries
| Cell model | Voltage(V) | Capacity(mah) | Diameter(mm) | Height(mm) | Charge current(mA) | Discharge current(mA) | Weight(g) | Temperature(°C) |
| 20H | 1.2 | 20 | 11.7±0.1 | 3.2±0.2 | 2 | 4 | 1.5 | 0~45 |
| 40H | 1.2 | 40 | 11.7±0.1 | 5.2±0.2 | 4 | 8 | 1.8 | 0~45 |
| 60H | 1.2 | 60 | 15.3±0.1 | 6.1±0.2 | 6 | 12 | 2 | 0~45 |
| 80H | 1.2 | 80 | 15.3±0.1 | 6.1±0.2 | 8 | 16 | 3.5 | 0~45 |
| 110H | 1.2 | 110 | 15.3±0.1 | 7.7±0.2 | 10 | 20 | 4.5 | 0~45 |
| 160H | 1.2 | 150 | 24.5*14±0.1 | 5.2±0.2 | 15 | 30 | 6 | 0~45 |
| 250H | 1.2 | 250 | 25±0.1 | 6.3±0.2 | 25 | 50 | 10 | 0~45 |
| 330H | 1.2 | 330 | 25±0.1 | 8.4±0.2 | 30 | 60 | 12.5 | 0~45 |
LUS battery welcome any battery pack customizations:
|
|

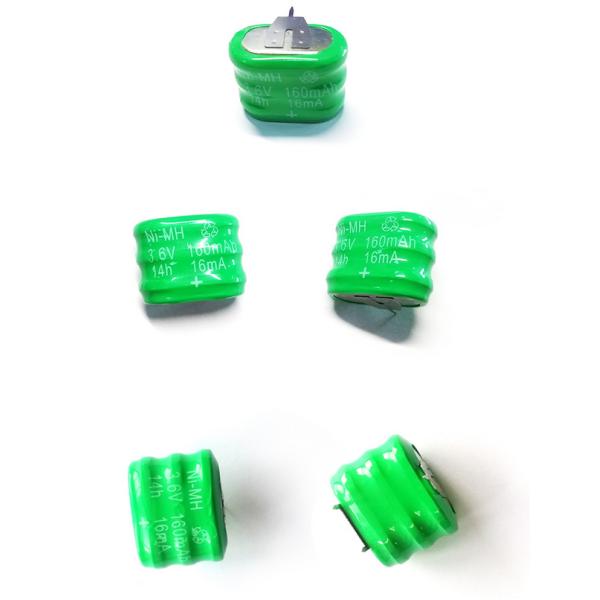

3*160H button nimh battery pack 3.6Volt cion nimh battery 160mah 160H battery Images
|
